Flex Drive Set L.h.r. 5 Mm

When using any flex shaft drive, the direction of rotation of the rear output is crucial.
Please pay attention to the left or right direction of rotation of the shaft when ordering.
The drive shaft has a standard length of 1 meter, but can be delivered longer in 10 cm increments.
Please specify the desired length in the comment field during the order process,  the final price will depend on the length.
Flex shaft diameter 5 mm, is recommended up to a maximum rotor circle of 1.90 m.
Flex shaft diameter 6 mm, is recommended from a rotor circle of 1.90 m.
The installation and operation of this rear drive unit is at its own discretion.

Determining the direction of rotation
If you look at the output shaft of your mechanics from behind and it rotates clockwise, you need a left rotation flex shaft.
If you look at the output shaft of your mechanics from behind and it rotates counterclockwise, you need a right rotation flex shaft.

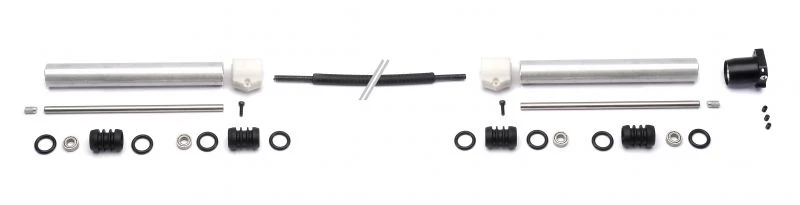

Package contents: see photo, outer sheath and Flex shaft not included – please order separately here:

Optional accessories:

Ord.No. 257/13 outer sheath
Ord.No. 257/14-L Flex shaft counterclockwise
Ord.No. 257/14-R Flex shaft clockwise
